Layer System

Stack layers like a painter. Buildings first, then roads, then trees. Each layer respects the ones above it.

What Is a Layer?

A DecorationLayer is a single scatter operation: what to place, where, how many, and what rules to follow. A forest is one layer. A rock field is another. A row of fence posts is a third. Stack them to build a complete world.

Three-quarter aerial view of the green test terrain populated by three superimposed scatter layers — 30 oaks distributed via Poisson disk, 20 plumeria added on top of the oaks (also Poisson), and 15 pines added clustered to the right side. The result reads as a mixed forest with broad oak canopies in the center, bright-green plumeria patches, and tall conifer pines along one edge. Stats bar reads Objects 65, Tris 962,560, Draws 132. — **Figure 1.** Three layers, one canvas. Each `scatter()` call adds to what's already there — oaks, then plumeria, then pines — without disturbing earlier placements.

Layer Definition

{
  "id": "pine-forest",
  "name": "Pine Forest",
  "instanceTypes": [
    { "speciesId": "pine", "weight": 0.6, "scaleMin": 0.8, "scaleMax": 1.2 },
    { "speciesId": "spruce", "weight": 0.3, "scaleMin": 0.7, "scaleMax": 1.1 },
    { "speciesId": "fir", "weight": 0.1, "scaleMin": 0.9, "scaleMax": 1.3 }
  ],
  "algorithm": "poisson",
  "count": 200,
  "minDistance": 5,
  "constraints": [
    { "type": "slope", "maxDegrees": 30 },
    { "type": "height", "minHeight": 10, "maxHeight": 80 }
  ],
  "priority": 10,
  "excludesLayers": ["buildings"]
}

Layer Properties

Property	Type	Description
`id`	string	Unique identifier for cross-layer references
`name`	string	Display name shown in UI panels
`instanceTypes`	array	Pool of object types with probability weights
`algorithm`	string	`poisson`, `clustered`, `density`, or `grid`
`count`	number	Target number of instances to place
`minDistance`	number	Minimum spacing between instances (meters)
`constraints`	array	Terrain-aware filters (slope, height, exclusion)
`priority`	number	Higher priority layers place first
`excludesLayers`	string[]	Layer IDs whose placements this layer avoids

Instance Types

Each layer defines a pool of instance types. When placing an object, one type is selected randomly based on weight. This creates natural variety — a forest layer might be 60% pine, 30% spruce, 10% fir.

Property	Type	Description
`speciesId`	string	Species registry lookup (e.g. `"oak"`, `"boulder"`)
`generator`	string	Procedural generator ID (`"ez-tree"`, `"rock"`)
`assetPath`	string	Path to pre-made GLB model (alternative to generator)
`weight`	number	Probability weight (0–1). Weights are normalized per layer
`scaleMin`	number	Minimum random scale (default 0.8)
`scaleMax`	number	Maximum random scale (default 1.2)
`rotationRandomY`	boolean	Randomize Y-axis rotation (default true)
`yOffset`	number	Vertical offset from ground (e.g. floating objects)

Priority & Exclusion

Layers are processed in priority order — highest priority first. Each placed instance becomes an exclusion zone for subsequent layers that list it in excludesLayers. This ensures buildings get first pick of the terrain, roads fill in around them, and trees avoid both.

🚧

Priority ordering — buildings (100) → roads (50) → trees (10)

Recommended: 1920×1080

// Layer priority example
const layers = [
  { id: "buildings", priority: 100, ... },  // Place first
  { id: "roads",     priority: 50,  ... },  // Avoid buildings
  { id: "trees",     priority: 10,  excludesLayers: ["buildings", "roads"] },
  { id: "flowers",   priority: 5,   excludesLayers: ["buildings", "roads", "trees"] }
]

Multi-Layer Pipeline

Sort by priority — Highest priority layers scatter first
Generate candidates — Each layer runs its scatter algorithm independently
Cross-layer exclusion — Remove candidates near higher-priority placements using spatial hash grid
Apply constraints — Filter by slope, height, exclusion zones
Select instance types — Weighted random selection from the layer's pool
Randomize transforms — Scale range, Y rotation, Y offset
Register placements — Store positions for lower-priority layers to avoid

ℹ Spatial Hash Grid

Cross-layer exclusion uses a spatial hash grid for O(n) performance. Cell size equals minDistance. For each candidate, only the 3×3 neighborhood of cells is checked — no need to compare against every placed object.

Biome Compositions

Layered scatters are how biomes are built. Each composition below uses 3–5 successive scatters — ground cover or rocks first, then mid-layer flora, then accent species — on the same procedural terrain, same camera. The variety comes from which species, which algorithm, which population, not from any biome-specific code path.

Tropical biome scene: 12 coconut palms scattered with the Clustered algorithm form a small grove on the right. 25 jurassic ferns are spread across the terrain via Poisson disk, looking like dark green stars on the ground. 8 jurassic-fern giants are clustered as larger fern-shaped accents. 12 plumeria bushes add bright lime-green color in the foreground. 57 instances total, 58,652 triangles, 943 draw calls. — **Tropical.** Coconut Palm + Jurassic Fern + Jurassic Fern Giant + Plumeria. Four scatters, 57 instances, distinct layered look from a single 256-meter terrain.

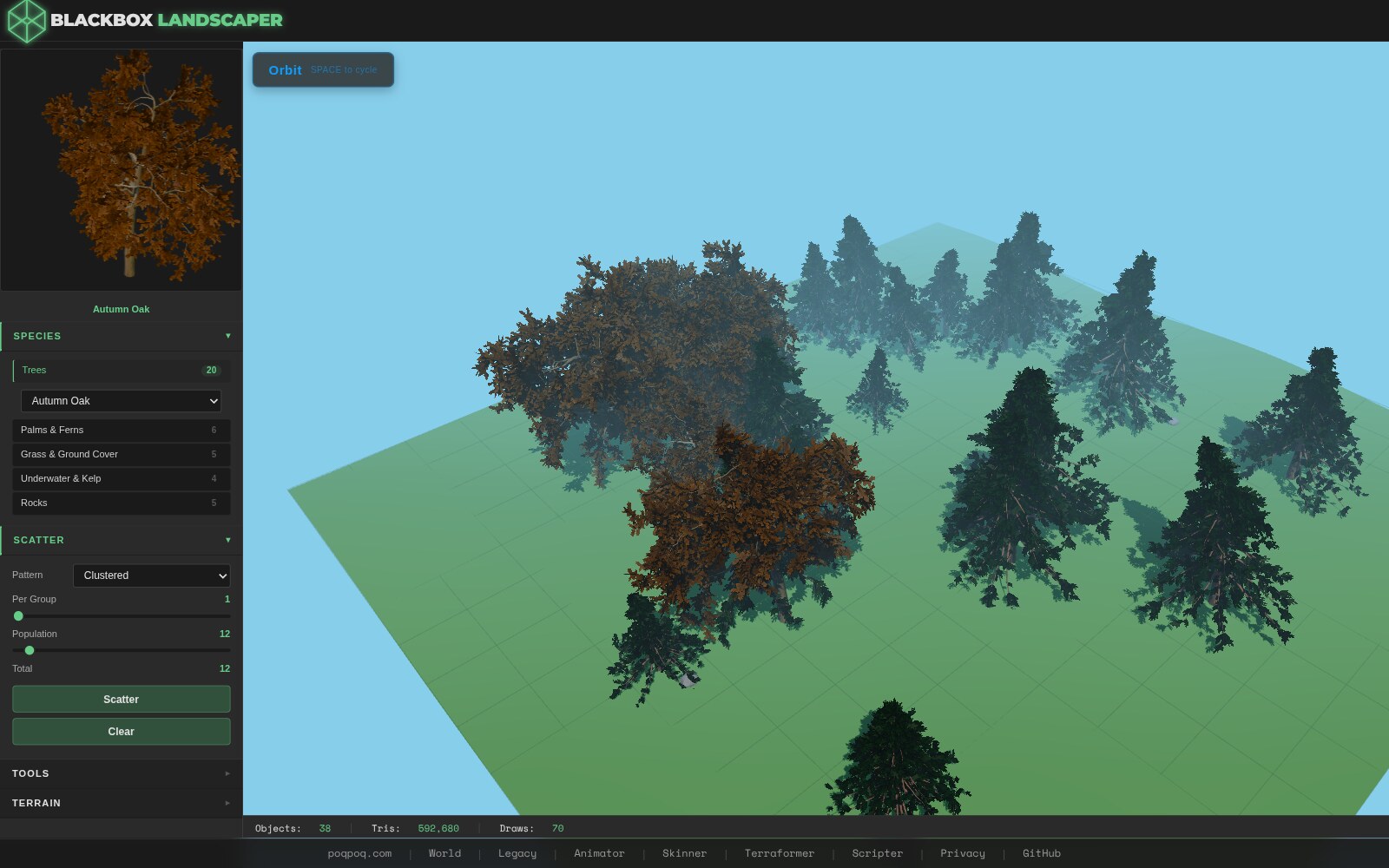

Mixed temperate forest: dark green Pine 2 conifers on the right side, with one large bright-orange Autumn Oak in the foreground left providing dramatic fall color contrast. 8 granite boulders are scattered between the trees but mostly hidden by the canopy. 38 instances total. — **Mixed temperate.** Granite Boulder (clustered) + Pine 2 (Poisson) + Autumn Oak (clustered). Rocks placed first; the Poisson and clustered scatters distribute around them.

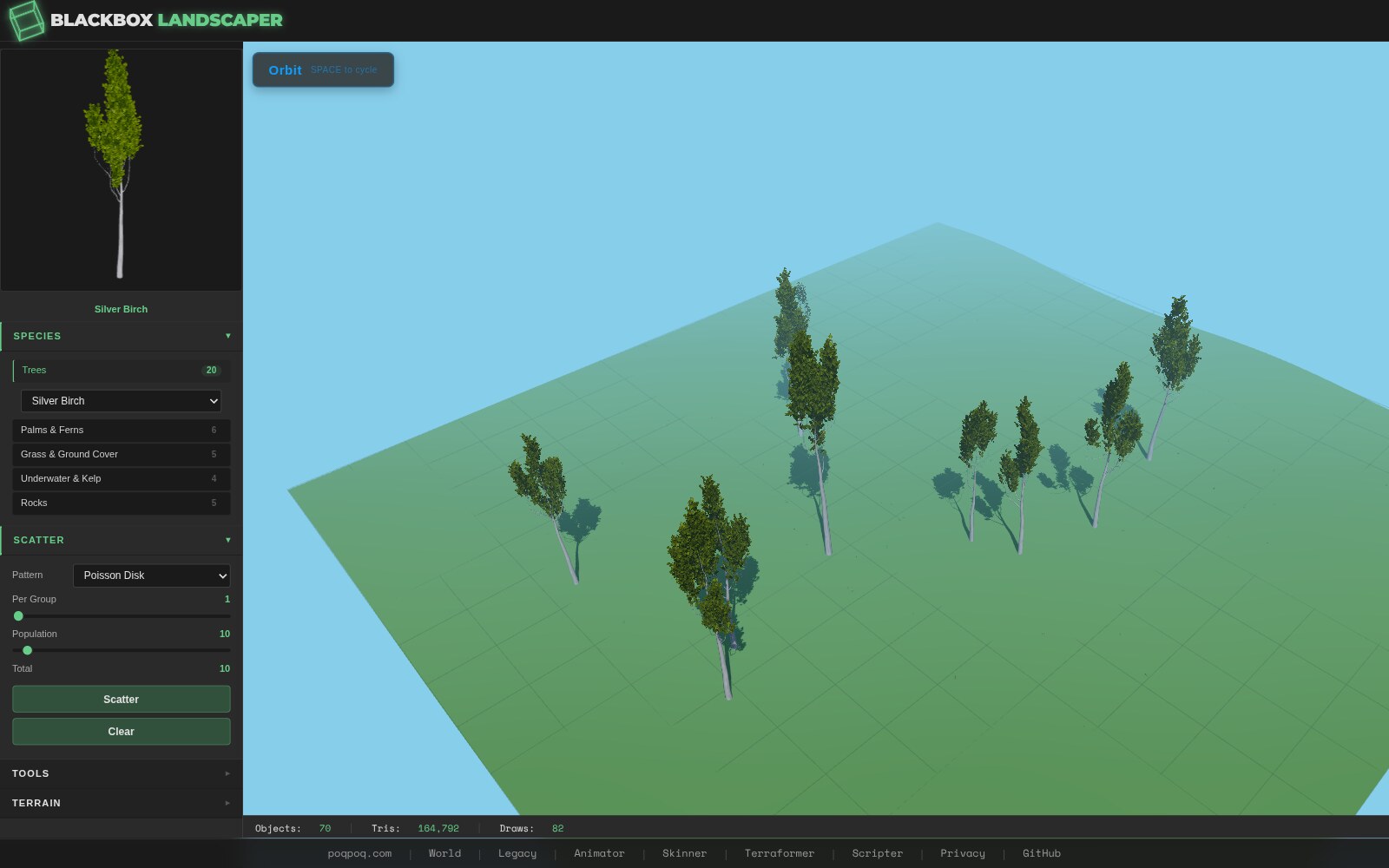

Open meadow: 10 silver birch trees with slender pale trunks scattered across the green terrain via Poisson disk. 60 wildflower-grass instances are placed but barely visible at this camera distance — they read as ground texture rather than discrete objects. The trees stand alone with significant open space between them. — **Meadow.** Wildflower Grass (Poisson, 60) + Silver Birch (Poisson, 10). Sparse silhouettes over ground cover; the negative space is part of the look.

Rocky outcrop with 50 rocks across four species. 15 jagged cliff rocks clustered in the upper-right area, 15 granite boulders distributed via Poisson, 8 mossy rocks clustered in the foreground, 12 smooth river stones spread via Poisson. Visible variety in shape, scale, and grouping. No vegetation — just rocks on grass. — **Rocky outcrop.** Jagged Cliff Rock + Granite Boulder + Mossy Rock + River Stone. Same algorithm pair (Clustered + Poisson) twice, four species — reads as a varied rocky landscape.

Single vs Multi-Layer

Method	Use Case	Cross-Exclusion
`scatter(layer)`	One layer in isolation	No
`scatterLayers(layers)`	Multiple layers together	Yes
